39HX Compact Air Handling Unit

Certification Image

HIGH-EFFICIENCY DUAL-FLOW AIR HANDLING UNIT



  • Plug & play unit (built-in control)
  • Class A+ across entire range
  • Classic / Vertical dual-flow
  • High-efficiency heat recovery unit
  • High performance plug fan





The 39HX dual-flow air handling unit is a PLUG & PLAY ventilation unit equipped with a highly efficient heat recovery unit with plug fans and high performance EC motors, designed to meet all the requirements of recent ecodesign regulations. Unit supplied ready to use, prewired, preprogrammed in the factory and supplied with a remote control. It draws clean, fresh air indoors sing, on average, 80% less energy than that needed for air conditioning (cooling and heating).

These units are designed for use in the following applications:

  • Administrative buildings, Offices
  • Education facilities, Libraries, Community centres
  • Cafés, Hotels, Restaurants
  • Shopping Centres
  • Nursing homes, Healthcare facilities
  • Collective Housing

39HXE & HXEZ models: 9 sizes, air flow from 300 to 18,000 m3/h. Floor-mounted horizontal unit with horizontal air flows and air connections on the sides.

39HXEZ model: 9 sizes, air flow from 300 to 18,000 m3/h. Wheel equipped with a purge sector as standard

39HXA model: 5 sizes, air flow from 350 to 8500 m3/h.

39HXC model: 5 sizes, air flow from 300 to 6600 m3/h. Floor-mounted horizontal unit with horizontal air flows and air connections on the sides.

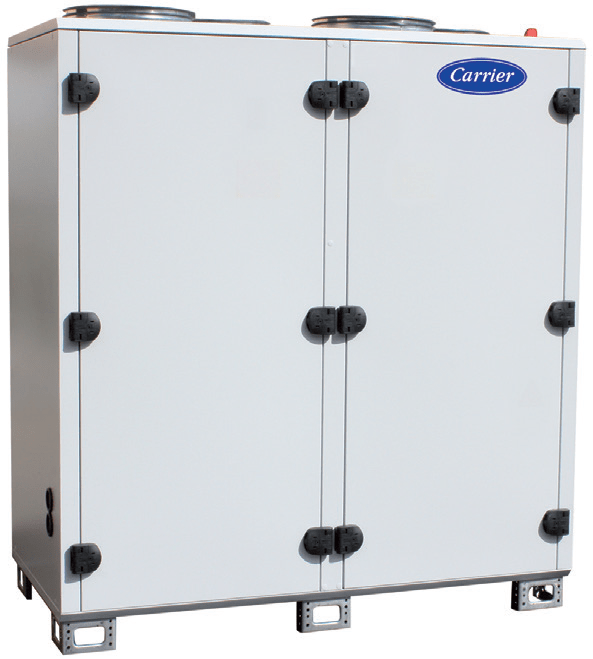

39HXV model: 3 sizes, air flow from 300 to 2600 m3/h. Floor-mounted vertical unit with vertical air flows and air connections on the top.

Download our documents

File imageProduct Selection Data
File imageIOM
File imageIOM Control
File Lock ImageMore technical info*This content is private, please login or register to download file
