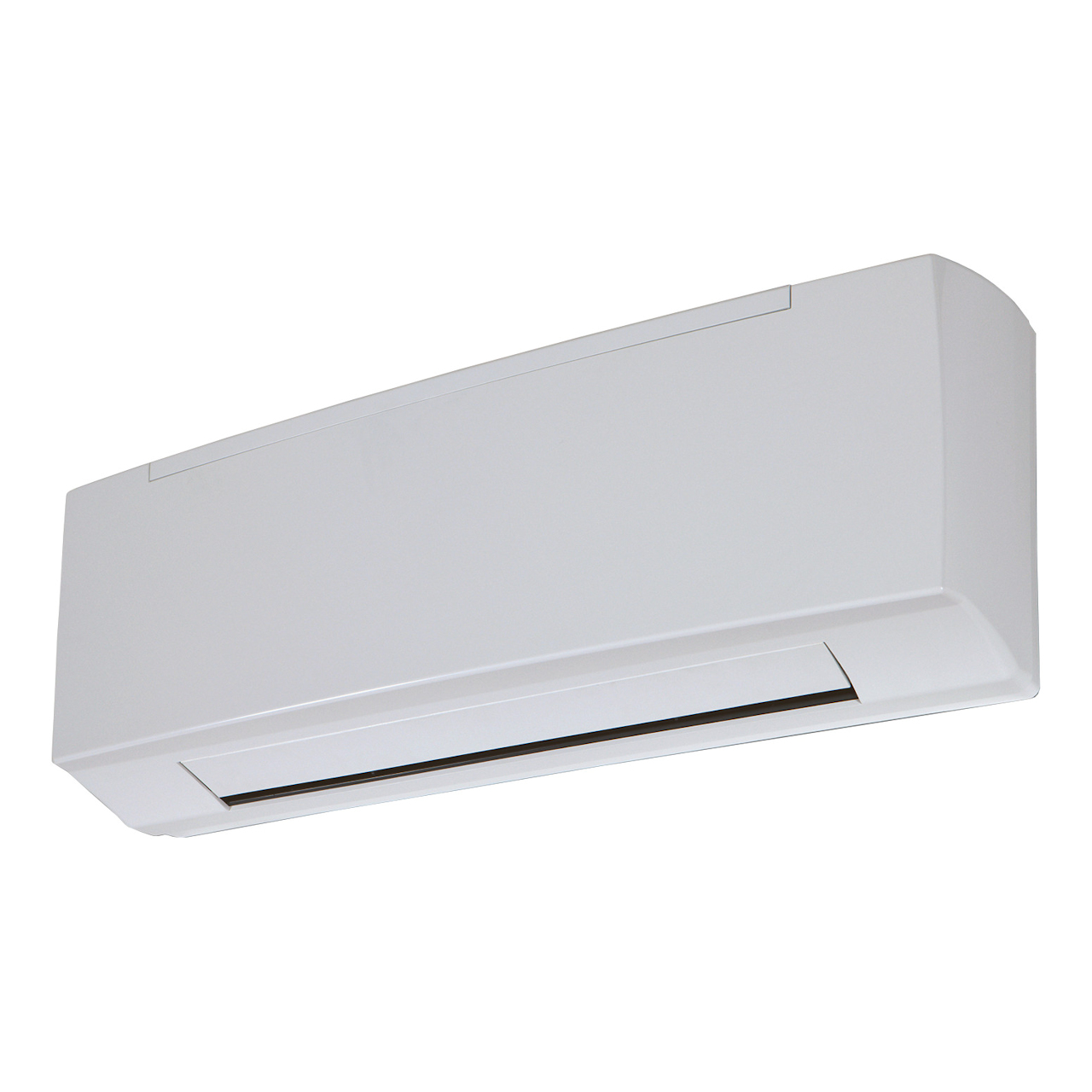

42WM High wall fan coil – Idrofan®

The 42WM is an hydraulic high wall fan coil available in 2 models and 4 sizes. The modern and appealing design of the unit in RAL 9003 colour allows the use in any environment.

Benefits

Cooling capacity : 1.2-3.8 kW Heating capacity : 1.3-4.3 kW

The 42WM is an hydraulic high wall fan coil available in 2 models and 4 sizes. The modern and appealing design of the unit in RAL 9003 colour allows the use in any environment.

  • Easy installation
  • Modern & design
  • Low energy consumption
  • Low noise level
Casing

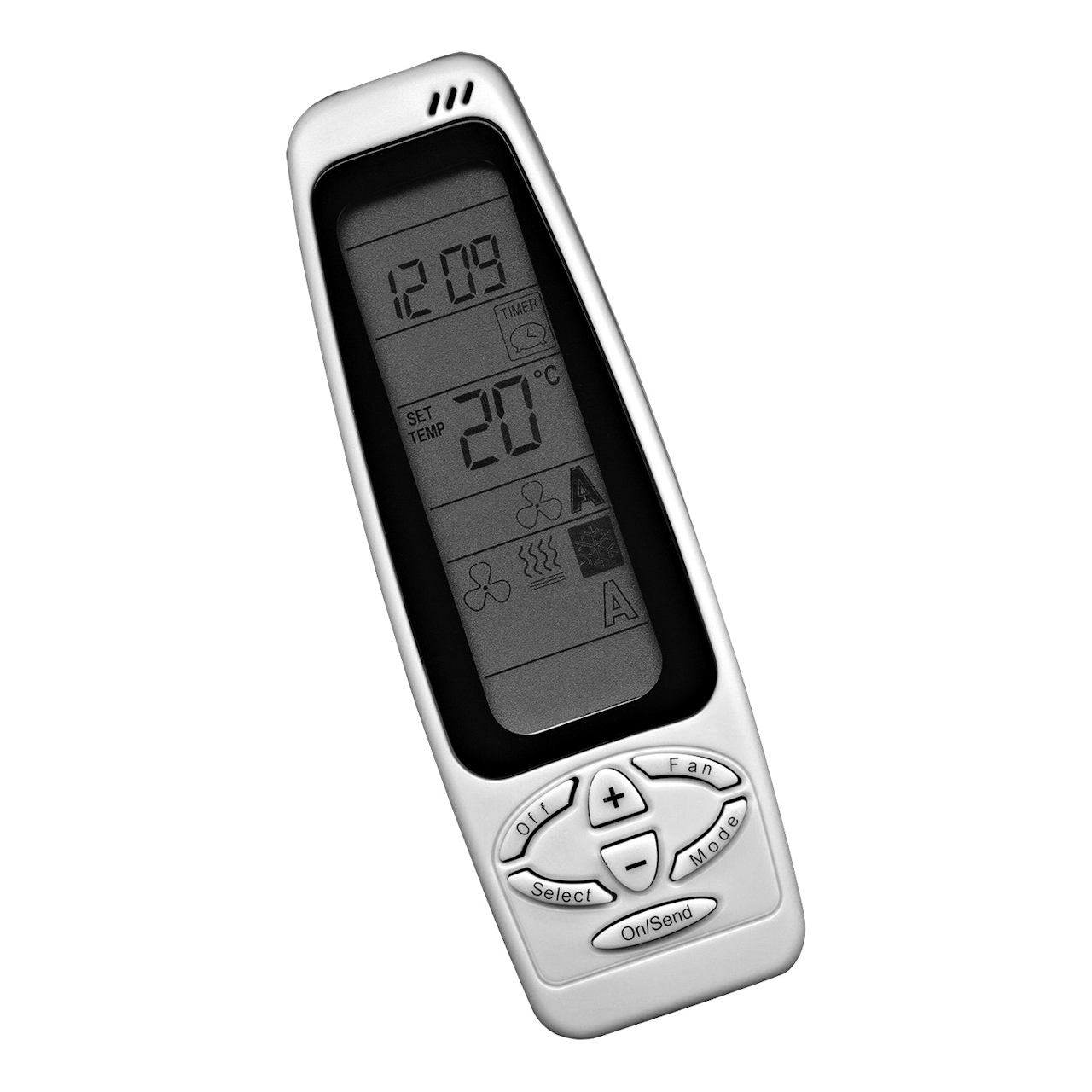

  • Made of auto-extinguishing ABS UL94 HB plastic with high specifications and great resistance to aging. The diffusion flap is adjusted manually in the basic version, with remote control in T version
Air Filter
  • Washable-regenerable synthetic filter, readily accessible
Fan Assembly
  • Made of plastic tangential fan
Electric motor
  • AC version
    • For single phase power supply and has six speeds, three of which are connected, with capacitor
    • Fitted on sealed for life bearings and is secured on anti-vibration and self-lubricating mountings
    • Internal thermal protection with automatic reset, protection IP20, class B
  • EC version
    • Electronic motor with permanent magnet brushless that is controlled with reconstructed current according to a BLAC sinusoidal wave
Heat exchange coil
  • Manufactured from drawn copper tube and the aluminum fins are mechanically bonded onto the tube by an expansion process
  • Not suitable for use in corrosive atmosphere or in environments where aluminum may be subject to corrosion
