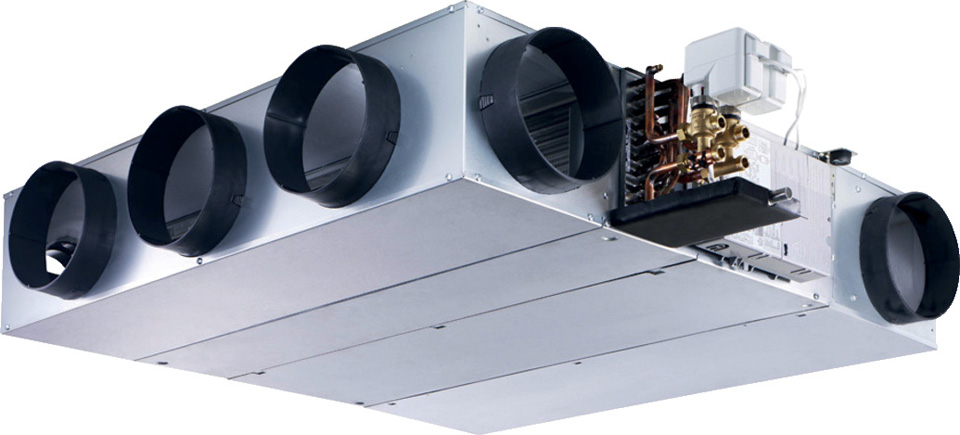

42NL & 42NH Hydronic Ducted Fan Coil Units

Certification Image

Nominal cooling capacities from 0,6 to 12 kW and heating from 0,8 to 17 kW

  • Available in different sizes with 2-pipe, 2-pipe plus electric heater or 4-pipe coils, with an air flow range from 100 to 2300 m3/h.
  • Low height of 235 mm (sizes 2/3/4/5) and 285 mm (sizes 6/7)
  • Five- to Six- speed fan AC motors offers a wide choice of medium speeds.
  • Reliable and economical for tertiary building as hotel guest rooms, offices or light commercial applications.
  • Compatible with the Carrier diffuser ranges.
  • Extremely low sound levels for ducted applications.
  • Five- to Six- speed fan AC motors offers a wide choice of medium speeds.
  • Available with Low Energy Consumption variable-speed EC motor.
  • High-pressure centrifugal fan for 42NH Range G1 filter as standard.
  • Safe factory installed electric heater with multiple capacity stages choices.
  • Low water pressure drop with factory installed valves.
  • Factory installed options (valves and controllers) for fast and easy installation in false ceilings.

Download our documents

File imageBrochure
File imageInstallation & Operation Manual
File imageProduct Selection Data
File Lock ImageMore technical info*This content is private, please login or register to download file
