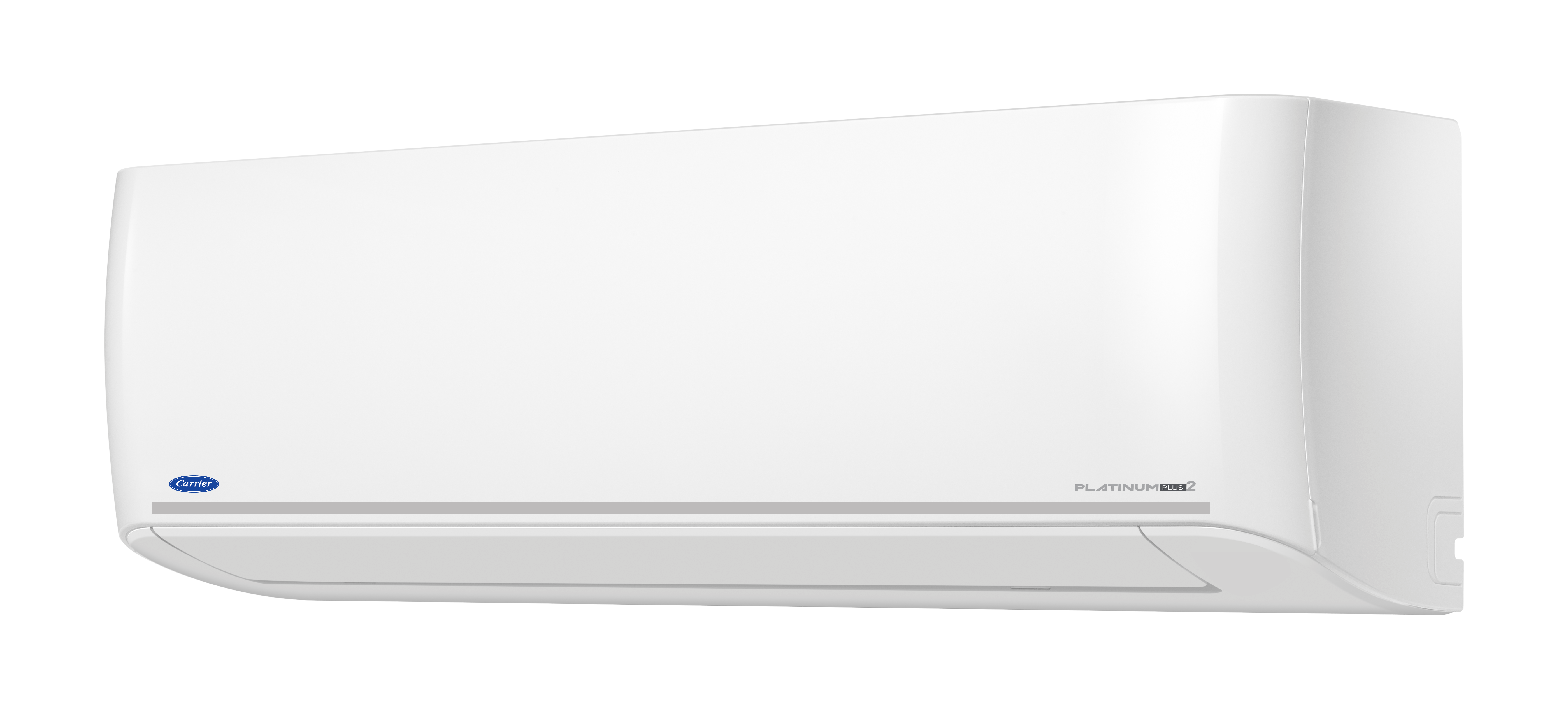

High energy performance
Withstanding the most extreme weather conditions, by utilizing our advanced inverter technology, the PLATINUM Plus series allows you to enjoy the most enhanced comfort levels.
- Save Money | With SEER up to 9.0 / SCOP up to 6.3 (warmer zone) and low energy consumption
- No Worries | Enjoy flawless operation even in extreme conditions with temperatures reaching up to +50°C in cooling and up to -25°C in heating
- Smart Energy Saving | With Intelligent Eye, enjoy cool or warm comfort without wasting energy when you’re not there, as the air conditioner automatically switches to energy-saving mode when it detects no movement in the room
- Uninterrupted Operation | Enjoy uninterrupted operation of your air conditioner, even in extreme cold conditions thanks to the Base Pan Heater & Crankcase Heater that prevent ice formation
- Comfort Humidity | Create the ideal atmosphere with intelligent room humidity level detection and automatic adjustment
- WiFi activated
- BTU/h
9.000 / 12.000 / 18.000
- Energy Class (Cooling/heating | warmer zone)
A+++ | A+++
- SEER | SCOP
SEER έως 9.0
SCOP έως 6.3
- Wi Fi
Activated
Wi-Fi Activated
You can remotely control one or more Carrier air conditioners and dehumidifiers with a user-friendly mobile app (available for iOS & Android). The Wi-Fi stick is placed within the product packaging and no additional equipment is required to connect the device.
Golden Fin
Unique anti-corrosive golden coating on the heat exchangers can withstand the salty air, rain and other corrosive elements. It also effectively prevents bacteria from breeding and improves heat efficiency.
Turbo Mode
Turbo function will be helpful to cool or heat your room quickly and effectively.
Eurovent certified
Eurovent’s certification ensures that all technical characteristics labeled on a product by its’ manufacturer are true.
Filter Vitamin C
Vitamin C, with its antioxidant action, is beneficial for skin health, due to its important role in the synthesis of skin collagen. This filter releases Vitamin C in the space, enhancing the elasticity and hydration of the occupants’ skin during the operation of the air conditioner.
Filter Negative Ion
This filter releases negative ions that refresh the air and provide a clean, refreshing atmosphere.
Base pan Heater & Crankcase Heater
Offers anti-freeze protection even in temperatures as low as -15oC.
Silent Mode
Indoor fan will run at super quiet mode, achieving extremely low noise levels.
Sleep Mode
This mode saves energy and improves night time comfort. The set temperature will increase by 1°C per hour in cooling mode or decrease by 1°C per hour in heating mode, for the first 2 hours of operation. Thereafter the unit will retain the new temperature for 5 hours after which it will switch off automatically!
Follow Me Mode
A temperature sensor built in the remote controller will sense its surrounding temperature. The unit can adjust room temperature more accurately to the area you place the remote controller, to give you greater comfort.
1W in Standby mode
The unit consumes less than 1W in standby mode.
Self Diagnosis & Auto Protection
Once abnormal operation or part failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.
X-ECO Mode
By activating this mode, the unit can consume up to 60% less energy, comparing to the normal mode. The unit automatically adjusts the fan speed and the compressor’s rotation providing you the same level of comfort but with the minimum energy consumption.
Remote Control Locking
You can lock the remote control to make sure that the selected settings are not accidentally changed.
Electrical voltage protection (168 to 264V)
The can fully operate within the power range of 168 to 230V, while also being protected from any fluctuations that may occur within this range.
Dehumidification
In this mode priority is given to dehumidifying the air. To achieve dehumidification the unit operates at low fan speeds and low compressor speeds.
5 YEARS WARRANTY
Carrier offers 5 years of warranty for all unit parts.
Note
The manufacturer reserves the right to change the characteristics of the products, the elements and the images, without prior notice.
| ΣΥΣΤΗΜΑ | 38QHP/42QHP09E8S-2 | 38QHP/42QHP12E8S-2 |
|---|---|---|
| Ψυκτική Απόδοση kW | 2.64 (1.0-4.8) | 3.52 (1.0-4.8) |
| Ψυκτική Απόδοση BTU/h | 9.008 (3.412 - 16.378) | 12.011 (3.412 - 16.378) |
| Θερμική Απόδοση kW | 4.00 (0.75-7.2) | 4.00 (0.75-7.2) |
| Θερμική Απόδοση BTU/h | 13.649 (2.559 - 24.567) | 13.649 (2.559 - 24.567) |
| Εύρος λειτουργίας ψύξης | -15~50 | -15~50 |
| Εύρος λειτουργίας θέρμανσης | -25~30 | -25~30 |
| SEER / SCOP (θερμή ζώνη) / SCOP (μεσαία ζώνη) / SCOP (ψυχρή ζώνη) W/W | 10.0/6.3/5.1/4.1 | 10.0/6.3/5.1/4.1 |
| Ενεργειακή Κλάση | A+++ / A+++ / A+++ / A+ | A+++ / A+++ / A+++ / A+ |
| Ετήσια κατανάλωση ενέργειας | 93/674/615/1690 | 123/674/615/1690 |
| Παροχή ρεύματος | 220-240V~, 50/60Hz | 220-240V~, 50/60Hz |
| ΕΣΩΤΕΡΙΚΗ ΜΟΝΑΔΑ | 42QHP09E8S-2 | 42QHP12E8S-2 |
| Ηχητική ισχύς dB(A) | 60 | 60 |
| Στάθμη θορύβου (Υψ./Μέση/Χαμ./Αθόρυβο) dB(A) | 43/34/24/21 | 43/34/24/21 |
| Παροχή αέρα (Υψ./Μέση/Χαμ./Αθόρυβο) m³/h | 575/497/340/190 | 575/497/340/190 |
| Βάρος kg | 12.7 | 12.7 |
| Διαστάσεις (Π×Β×Υ) mm | 895x248x298 | 895x248x298 |
| ΕΞΩΤΕΡΙΚΗ ΜΟΝΑΔΑ | 38QHP09E8S-1 | 38QHP12E8S-1 |
| Ηχητική ισχύς dB(A) | 63 | 63 |
| Στάθμη θορύβου dB(A) | 47,5 | 51,5 |
| Παροχή αέρα m³/h | 2350 | 2350 |
| Βάρος kg | 32.3 | 32.3 |
| Διαστάσεις (Π×Β×Υ) mm | 805x330x554 | 805x330x554 |
Download our documents
Εμπορικό ΦυλλάδιοΕγχειρίδιο ΕγκατάστασηςContact
